Pegasus Nautilus Lighting Kit
Product Code: LK-PN-01
1
£40.00 inc. tax
Description
Nautilus Lighting Kit

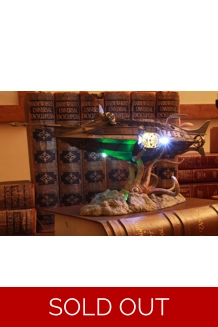

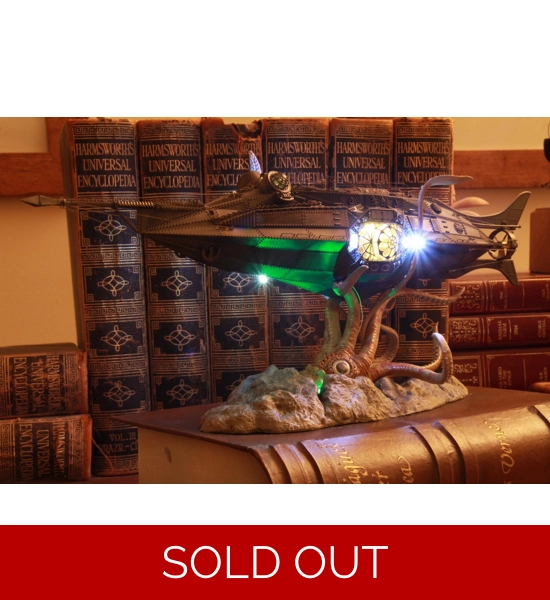

This lighting kit is designed to fit the Pegasus Nautilus submarine kit.
Consists of:
2 green Base LEDs
4 warm white Salon LEDs
1 warm white Bridge LED
4 white Porthole LEDs
1 white Spotlight LED
Control Board (Includes ATtiny85 processor)
Socket Board
Battery holder with switch (3 x AA)
The kit has two board one that fits in the base for the main supply and the Base LEDs and one for the sub which has the processor and sub lights. There are 3 wires between the base and sub which will require hiding in one of the Squid tentacles.
The processor provides a sequencing programme for the lighting as follows:
On power on the base light come on followed by the salon, bridge, porthole and spot, after 10 minutes the lights o out in the reverse sequence with the exception of the base light which remain on. After 1 minute the sub lights come on in the same sequence as before, this sequence repeats until power is switched off.
The kit comes with full instructions and other than fitting a switch and battery holder (both not included) it is fully wired. The porthole and spot LEDs are on pins & sockets to aid installation. The spot is optional and will not affect the sequencing if not fitted.
Watch the video on YouTube showing content and sequencing.
http://youtu.be/7tELyYIWbzc
The kit is designed to run from 3 x AA batteries, holder with built-in switch included
