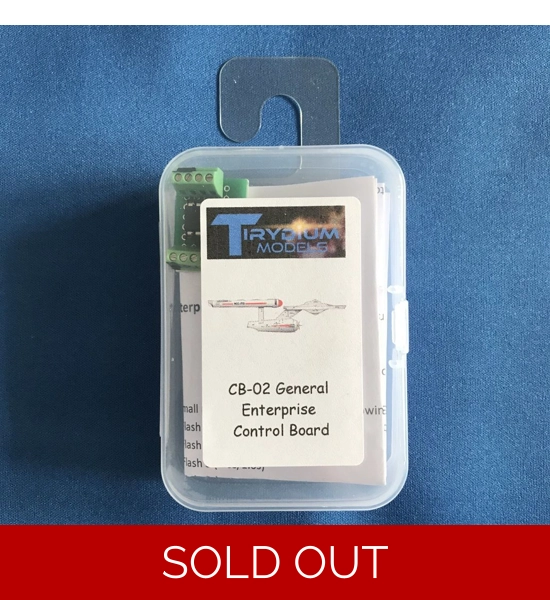

CB-02 General Enterprise Control Board

CB-02 General Enterprise Control Board.

This is a range of control boards only, ideal for those that are happy to wire and solder their own LEDs but want to add some functionality to them.

This board is a general set up for the Star Trek Enterprise and gives you the most popular flash rates used an most ST ships.

The board uses an ATtiny85 processor that is pre-programmed with the following outputs:

• 0 - Navigation Flash 1 (1.0s/1.0s)
• 1 - Navigation Flash 2 (1.0s/1.0s)
• 2 - Navigation Flash 3 (1.0s/1.0s)
• 3 - Strobe 1 (0.3s/0.3s)
• 4 - Strobe 2 (0.2s/0.8s)

The board requires a 3V - 5V supply and each output can drive up to 4 LEDs which are connected to the terminals on the board.

If you want different flash rates from the standard send a message with your order and I can modify to suit.
